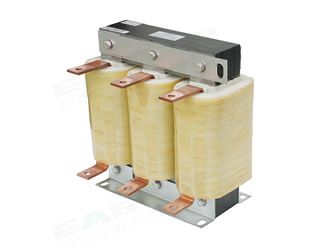

  • Output Choke

    The output AC reactor is mainly used for the smoothing filtering. By reducing the transient voltage dv/dt, it extends the service-life of the electrical machine. This equipment is also applied to reduce the noise of the electrical machine, the eddy-current loss and the leak current caused by the output of the higher harmonic. Moreover, it is also employed to protect the power switching components inside the inverter.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • (Inventory: 99999)
Description

The output AC reactor is mainly used for the smoothing filtering. By reducing the transient voltage dv/dt, it extends the service-life of the electrical machine. This equipment is also applied to reduce the noise of the electrical machine, the eddy-current loss and the leak current caused by the output of the higher harmonic. Moreover, it is also employed to protect the power switching components inside the inverter.

Voltage
3AC   380V-480V
SIEMENS P/NEAGTOP   P/N Power (KW) Rated current (A)Inductance  (mh）
6SL3210-1PE11-8UL1OCL-0005-EISC-E1M4D1.551.40
6SL3210-1PE12-3UL1OCL-0005-EISC-E1M4D1.551.40
6SL3210-1PE13-2UL1OCL-0005-EISC-E1M4D1.551.40
6SL3210-1PE14-3UL1OCL-0005-EISC-E1M4D1.551.40
6SL3210-1PE16-1UL1OCL-0007-EISC-E1M0D2.271.00
6SL3210-1PE18-0UL1OCL-0010-EISC-EM70D3.7100.70
6SL3210-1PE21-1UL0OCL-0010-EISC-EM70D3.7100.70
6SL3210-1PE21-4UL0OCL-0015-EISCL-EM47D5.5150.47
6SL3210-1PE21-8UL0OCL-0020-EISCL-EM35D7.5200.35
6SL3210-1PE22-7UL0OCL-0030-EISCL-EM23D11300.23
6SL3210-1PE23-3UL0OCL-0040-EISCL-EM18D15400.18
6SL3210-1PE23-8UL0OCL-0050-EISCL-EM14D18.5500.14
6SL3210-1PE24-5UL0OCL-0060-EISCL-EM12D22600.12
6SL3210-1PE26-0UL0OCL-0080-EISCL-E87UD30800.09
6SL3210-1PE27-5UL0OCL-0090-EISCL-E78UD37900.08
6SL3210-1PE28-8UL0OCL-0120-EISCL-E58UD451200.06
6SL3210-1PE31-1UL0OCL-0150-EISCL-E47UD551500.05
6SL3210-1PE31-5UL0OCL-0200-EISCL-E35UD752000.04
6SL3210-1PE31-8UL0OCL-0250-EISH-E28UD90-1102500.03
6SL3210-1PE32-1UL0OCL-0250-EISH-E28UD90-1102500.03
6SL3210-1PE32-5UL0OCL-0290-EISH-E24UD1322900.03
6SL3210-1PE33-0CL0OCL-0330-EISH-E21UD1603300.02
6SL3210-1PE33-7CL0OCL-0390-EISH-E18UD1853900.02
6SL3210-1PE34-8CL0OCL-0490-EISH-E14UD2204900.01
6SL3210-1PE11-8AL1OCL-0005-EISC-E1M4D1.552.80
6SL3210-1PE12-3AL1OCL-0005-EISC-E1M4D1.552.80
6SL3210-1PE13-2AL1OCL-0005-EISC-E1M4D1.552.80
6SL3210-1PE14-3AL1OCL-0005-EISC-E1M4D1.552.80
6SL3210-1PE16-1AL1OCL-0007-EISC-E1M0D1.552.80
6SL3210-1PE18-0AL1OCL-0010-EISC-EM70D2.272.00
6SL3210-1PE21-1AL0OCL-0010-EISC-EM70D3.7101.40
6SL3210-1PE21-4AL0OCL-0015-EISCL-EM47D5.5150.93
6SL3210-1PE21-8AL0OCL-0020-EISCL-EM35D7.5200.70
6SL3210-1PE22-7AL0OCL-0030-EISCL-EM23D11300.47
6SL3210-1PE23-3AL0OCL-0040-EISCL-EM18D15400.35
6SL3210-1PE23-8AL0OCL-0050-EISCL-EM14D18.5500.14
6SL3210-1PE24-5AL0OCL-0060-EISCL-EM12D22600.12
6SL3210-1PE26-0AL0OCL-0080-EISCL-E87UD30800.09
6SL3210-1PE27-5AL0OCL-0090-EISCL-E78UD37900.08
6SL3210-1PE28-8AL0OCL-0120-EISCL-E58UD451200.06
6SL3210-1PE31-1AL0OCL-0150-EISCL-E47UD551500.05
6SL3210-1PE31-5AL0OCL-0200-EISCL-E35UD752000.04
6SL3210-1PE31-8AL0OCL-0250-EISH-E28UD90-1102500.03
6SL3210-1PE32-1AL0OCL-0250-EISH-E28UD90-1102500.03
6SL3210-1PE32-5AL0OCL-0290-EISH-E24UD1322900.02
6SL3210-1PE33-0AL0OCL-0330-EISH-E21UD1603300.02
6SL3210-1PE33-7AL0OCL-0390-EISH-E18UD1853900.02
6SL3210-1PE34-8AL0OCL-0490-EISH-E14UD2204900.01
Voltage
3AC 3AC   500V-690V
6SL3210-1PH21-4UL0OCL-0015-EISC-EM937.5150.93
6SL3210-1PH22-0UL0OCL-0020-EISH-EM7011200.70
6SL3210-1PH22-3UL0OCL-0030-EISH-EM4715300.47
6SL3210-1PH22-7UL0OCL-0030-EISH-EM4715300.47
6SL3210-1PH23-5UL0OCL-0040-EISH-EM3522400.35
6SL3210-1PH24-2UL0OCL-0050-EISH-EM2830500.28
6SL3210-1PH25-2UL0OCL-0060-EISH-EM2337600.23
6SL3210-1PH26-2UL0OCL-0080-EISH-EM1745800.17
6SL3210-1PH28-0UL0OCL-0090-EISH-EM1755900.17
6SL3210-1PH31-0UL0OCL-0120-EISH-EM11751200.11
6SL3210-1PH31-2UL0OCL-0150-EISH-EM09A901500.09
6SL3210-1PH31-4UL0OCL-0150-EISH-EM09A901500.09
6SL3210-1PH21-4AL0OCL-0015-EISC-EM937.5150.93
6SL3210-1PH22-0AL0OCL-0020-EISH-EM7011200.70
6SL3210-1PH22-3AL0OCL-0030-EISH-EM4715300.47
6SL3210-1PH22-7AL0OCL-0030-EISH-EM4715300.47
6SL3210-1PH23-5AL0OCL-0040-EISH-EM3522400.35
6SL3210-1PH24-2AL0OCL-0050-EISH-EM2830500.28
6SL3210-1PH25-2AL0OCL-0060-EISH-EM2337600.23
6SL3210-1PH26-2AL0OCL-0080-EISH-EM1745800.17
6SL3210-1PH28-0AL0OCL-0090-EISH-EM1755900.17
6SL3210-1PH31-0AL0OCL-0120-EISH-EM11751200.11
6SL3210-1PH31-2AL0OCL-0150-EISH-EM09A901500.09
6SL3210-1PH31-4AL0OCL-0150-EISH-EM09A901500.09
6SL3210-1PH31-7CL0OCL-0200-EISH-EM07A1322000.07
6SL3210-1PH32-1CL0OCL-0250-EISH-E55UA2002500.06
6SL3210-1PH32-5CL0OCL-0250-EISH-E55UA2002500.06

Note: Parameters are for reference only. If you have any questions, please contact our sales department for detail information.
