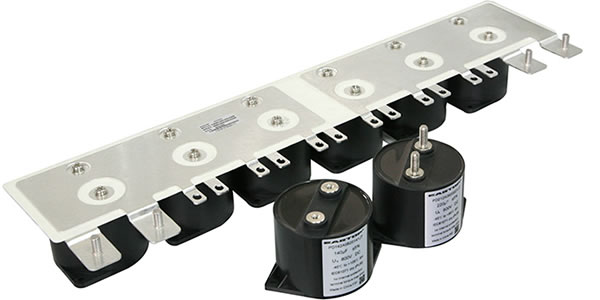

DC-Link电容器( 干式, 塑料外壳, 最高温度105℃)
❤ 收藏

DC-Link电容器( 干式, 塑料外壳, 最高温度105℃)

￥0.00
￥0.00
￥0.00
￥0.00
重量：0.000KG
数量：
立即购买
加入购物车
商品描述


Applications
DC-link capacitor is applied to vehicles such as electric cars and hybrid vehicles, welding equipment, elevators, motor drives, and so on.

Technical Requirements

Reference standardGB/T 61071, AEC Q200D-2010
Climatic category40/105/56
Operating temperature-40 ℃ ~105 ℃ {θmax(hotspot) ≤105 ℃ }
Storage temperature-40 ℃ ~105 ℃
Voltage450Vdc~900Vdc
Capacitance47μF~380μF
Capacitance tolerance±5 ％ (J), ±10 ％ (K)
Hipot testBetween terminals1.5Un(10s)
Between terminals and case4000Vac(10s,50Hz)
Tangent of the angle loss Tgδ＜ 20×10-4
IR×Cn≥5000s
Over voltage1.1Un(30 ％ of on-load-dur) 1.15Un(30min/day) 1.2Un(5min/day) 1.3Un(1min/day) 1.5Un(30ms every time,1000times during the life of the capacitor)
Max. altitude2000m
Max. torque of terminalsM5: 2.5NmM8: 6Nm
Max. torque of installation3.0Nm
InstallationAny position
Failure rate50FIT

Order Coding Rule

CodeCharacterNote
⑴Internal codeP: Passive components: capacitor
⑵Function of capacitorA: Alternate capacitor, D: Direct capacitor
⑶⑷Application14 plastic shell
⑸Case2=φ84.5
⑹Version of productA: First version; B: Second version, etc; S: Special product
⑺⑻⑼Rated voltageFor examples: 062=600V,112=1100V
⑽⑾⑿⒀Rated capacitance (unit: μF)For examples: 0421=42×101=420μF, 1061=106×101 =1060μF
⒁Tolerance of capacitanceJ=±5%, K=±10%, M=±20%, S: others
⒂TerminalsT: Internal thread M5x10mm , Z: internal stud M8x20mm , J: integrated type

Technical Parameters

CN/uFRS/mΩImax/A
(60 ℃ )		Imax/A
(85 ℃ )		Î/KAWN/WSLe/nHD/mmH1/mmOrdering code
U N 450VDC Us 675V Ur 100V
2600.796635.2263284.551PD142B4510261**
3800.881535.7384084.565PD142B4510381**
U N 600VDC Us 900V Ur 100V
1500.984553.75273284.551PD142B0620151**
220172488.4404084.565PD142B0620221**
U N 800VDC Us 1200V Ur 200V
100181533323284.551PD142B0820012**
1401.364423.5454084.565PD142B0820141**
U N 900VDC Us 1350V Ur 200V
701.274492.1283284.551PD142B0920071**
1001.267442.5404084.565PD142B0920012**

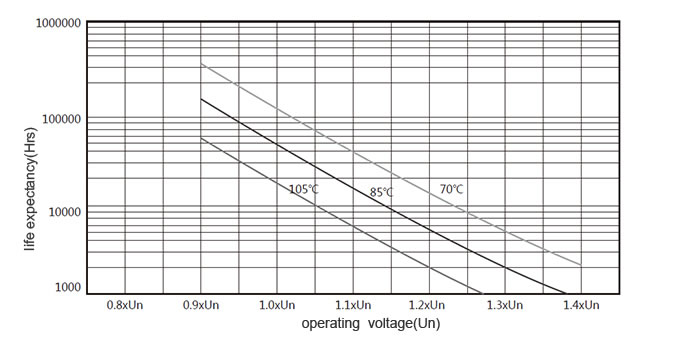

Average Lifetime Curve

Outline Drawing
